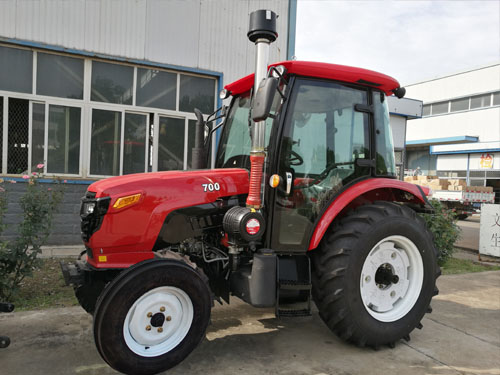

LZ700 with rops and sunshade




Model LZ700 LZ750 LZ800 LZ850 LZ704 LZ754 LZ804 LZ854
Type 2WD    Wheeled Type 4WD    Wheeled Type
Dimensions of Tractor(mm) Length (to front ballast) 4052 4090 4052 4090
Width 1900
Height (to the exhaust vent) 2690
Tread Front Wheel 1380   1455
Rear Wheel 1510 1520 1510 1520
Axle Base 2230 2268 2278 2316
Min.Ground Clearance 430   350
Structure weight (kg)  2730 2860 2810 2940
Ballast weight
(kg)
Front ballast 250
Rear ballast 170 , 340 , 510 (optional)
Rated traction force (N) 13000 13500 14000 14800 15000 15200 15200
Engine Model 4105/4108
Type Vertical,4-Cylinder,Water Cooled and 4-stroke
Rated Power(kw) 51.4 55.1 58.8 62.5 51.4 55.1 58.8 62.5
Rated speed (r/min) 2200
Fuel Diesel
Tyre Front Wheel 7.00-16 7.00-16 7.00-16 7.00-16 8.3-24 8.3-24 8.3-24 8.3-24
Rear Wheel 14.9-30
Clutch Dual-stage clutch
Steering power steering
Transmission Type 8+2  or  (8+2)×2 with creeper shift
Suspension Type 3-point links
PTO Type and Rev Semi-independent Type 540/1000
Spline Size F35 Rectangle Spline with 6 teeth
