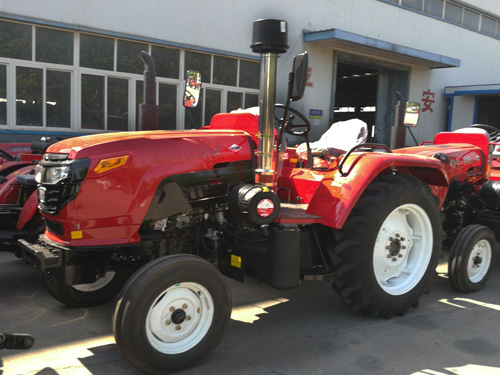

LZ450 basic type




Model LZ400 LZ450 LZ480 LZ500 LZ520 LZ550
Type 2WD    Wheeled Type
Dimensions of Tractor(mm) Length(With front ballast) 3835 3880 3855
Width 1620 1750 1750
Height(to the exhaust vent) 2135 2210 2130
Tread Front Wheel 1300 or 1200~1500 Adjusted
Rear Wheel 1300 Fixed or 1200~1500 Adjusted
Axle Base 1910 1994 2081
Min.Ground Clearance 410 400
(kg) Structure weight 1665 1734 1790
Ballast weight
(kg)
Front ballast 112 140
Rear ballast 100 200
Rated traction force (N) 8300 8500 8700 8800 8900 9500
Engine Model 3105/490 495 495/498 498/4100 4100 4105
Type Vertical,4-Cylinder,Water Cooled and 4-stroke
Rated Power(kw) 29.4 33 35.2 36.7 38.2 40.4
Rated speed (r/min) 2400
Fuel Diesel
Tyre Front Wheel 6.00-16
Rear Wheel 12.4-28
Clutch Dual-stage clutch
Steering power steering
Transmission Type 8+2  or  8+8 with shuttle gearshift or (8+2)×2 with creeper shift
Suspension Type 3-point links
Suspension Type Type and Rev Semi-independent Type 540/1000
PTO Spline Size F35 Rectangle Spline with 6 teeth
