China Luzhong LZ series wheel tractors


120-160HP Tractors
90-110HP Tractors
70-85HP Tractors
60-65HP Tractors
40-55HP Tractors
25-35HP Tractors
35-65HP Garden Tractors
17-32HP small Tractors
Tractor Implements
Tractor Parts



ADD.:West Beigong St.,Weifang,China.
TEL: 86-536-8762171
FAX: 86-536-8219865



LZ404 basic type

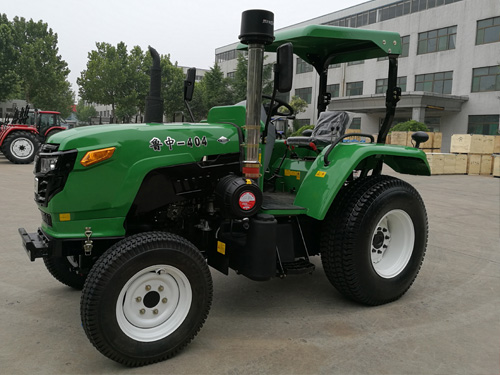

LZ404 with rops, sunshade,turf tire
LZ404 with cabin


Model LZ404 LZ454 LZ484 LZ504 LZ524 LZ554
Type 4WD    Wheeled Type
Dimensions of Tractor(mm) Length (to front ballast) 3835 3872 3847
Width 1620 1750 1750
Height (to the exhaust vent) 2220 2135 2130 2130
Tread Front Wheel 1280 1250
Rear Wheel 1300 Fixed or 1200~1500 Adjusted
Axle Base 2030 2010 2073
Min.Ground Clearance 325
Structure weight (kg)  1665 1734 1790
Ballast weight
Front ballast 140 168
Rear ballast 200 300
Rated traction force (N) 11000 11300 11400 11500 11600 11800
Engine Model 3105/490 495 495/498 498/4100 4100 4105
Type Vertical,4-Cylinder,Water Cooled and 4-stroke
Rated Power(kw) 29.4 33 35.2 36.7 38.2 40.4
Rated speed (r/min) 2400
Fuel Diesel
Tyre Front Wheel 8.3-20
Rear Wheel 12.4-28
Clutch Dual-stage clutch
Steering power steering
Transmission Type 8+2  or  8+8 with shuttle gearshift or (8+2)×2 with creeper shift
Suspension Type 3-point links
PTO Type and Rev Semi-independent Type 540/1000
Spline Size F35 Rectangle Spline with 6 teeth





 Shandong Weifang Luzhong Tractor Co.,Ltd., one of the largest private tractor manufacturer in China, is located in Weifang City, Shandong Province, China . LZ series tractors are from 17HP to 85HP, include 17HP-25HP series,25HP-32HP series,35HP series,40HP-55HP series,70-85HP series......                             More
