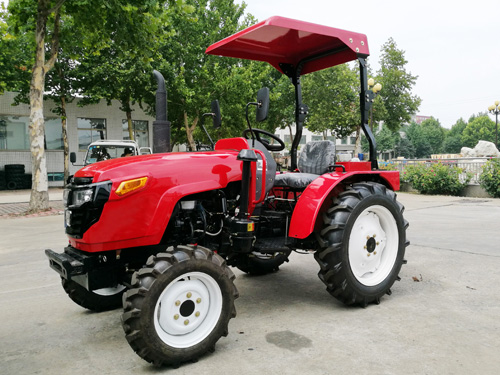

LZ264 with Rops and Sunshade




Model LZ254 LZ264 LZ304
Type 4WD    Wheeled Type
Dimensions of Tractor(mm) Length (to front ballast) 3030
Width 1470
Height (to the exhaust vent) 1900
Tread Front Wheel 1215 Fixed or 1150~1215 Adjusted
Rear Wheel 1300 Fixed or 1300~1350 Adjusted
Axle Base 1710
Min.Ground Clearance 347.5
Structure weight (kg)  1130
Ballast weight
(kg)		 Front ballast 56
Rear ballast 112
Rated traction force (N) 5500 5700 6660
Engine Model 385 385 390/485
Type Vertical,3-Cylinder,Water Cooled and 4-stroke
Rated Power(kw) 18.3 19.1 22
Rated speed (r/min) 2400
Fuel Diesel
Tyre Front Wheel 6.00-14
Rear Wheel 9.5-24
Clutch Dual-stage clutch
Steering power steering
Transmission Type 8+2  or  8+8 with shuttle gearshift or (8+2)×2 with creeper shift
Suspension Type 3-point links
PTO Type and Rev Semi-independent Type 540/1000
Spline Size F35 Rectangle Spline with 6 teeth
