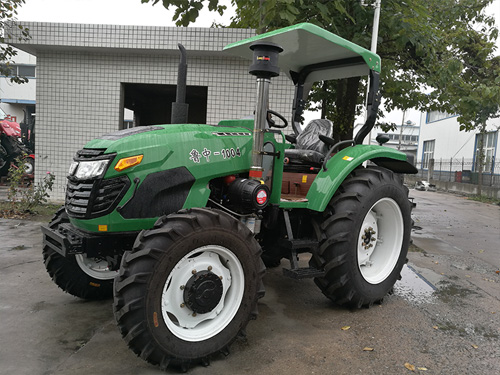

LZ1004 basic type

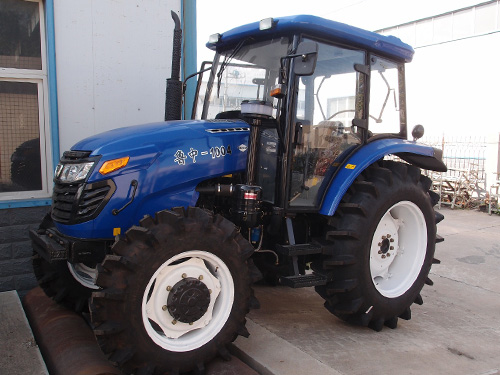

LZ1004 with cabin


Model LZ900 LZ950 LZ1000 LZ904 LZ954 LZ1004
Type 2WD    Wheeled Type 4WD    Wheeled Type
Dimensions of Tractor(mm) Length (to front ballast) 4530
Width 2050
Height (to the exhaust vent) 2810
Tread Front Wheel 1485 1600
Rear Wheel 1608 1608
Min.Ground Clearance 430 405
Structure weight (kg)  2730 2860 3010 2940
Ballast weight
(kg)
Front ballast 250
Rear ballast 170 , 340 , 510 (optional)
Rated traction force (N) 17700 18700 19700 21300 22500 23600
Engine Model LR4M3Z-23
Type Vertical,4-Cylinder,Water Cooled and 4-stroke
Rated Power(kw) 66.1 69.9 73.5 66.1 69.9 73.5
Rated speed (r/min) 2200
Fuel Diesel
Tyre Front Wheel 6.5-20 12.4-24
Rear Wheel 14.9-30 16.9-34
Clutch Dual-stage clutch
Steering power steering
Transmission Type 8+2  or  (8+2)×2 with creeper shift
Suspension Type 3-point links
PTO Type and Rev Semi-independent Type 540/1000
Spline Size F35 Rectangle Spline with 6 teeth
