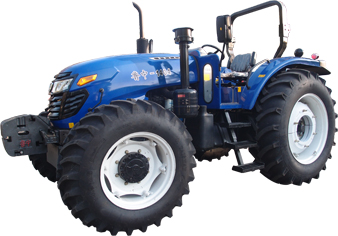

Model LZ1404 LZ1504 LZ1604
Type 4x4
Dimensions of Tractor(mm) Length (to front ballast) 5360
Width 2560
Height (to the exhaust vent) 3120
Wheelbase 2582
Tread Front Wheel 1784-2202( Usual 1940)
Rear Wheel 1650-2285(Usual 1750)(18.4-34)/1620-2420(Usual 1850)(18.4-38)
Min.Ground Clearance 430
Structure weight (kg)  4900
Ballast weight
(kg)
Front ballast 250
Rear ballast 170 , 340 , 510 (optional)
Engine Model LR6M3Z-23
Type Vertical,6-Cylinder,Water Cooled and 4-stroke
Rated Power(kw) 103 110.3 117.9
Rated speed (r/min) 2300
Fuel Diesel
Tyre Front Wheel 14.9-26
Rear Wheel 18.4-38
Clutch Dual-stage clutch
Steering Power steering
Transmission Type 16F+8R
Suspension Type Three-point linkage Category II
Lifting capacity(at point of 610mm) KN ≥35
Lifting capacity(origin)KN ≥51.94
PTO Type and Rev Semi-independent Type 540/1000
Spline Size F35 Rectangle Spline with 6 teeth
