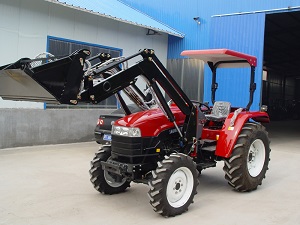

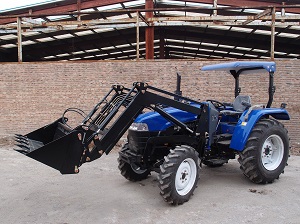

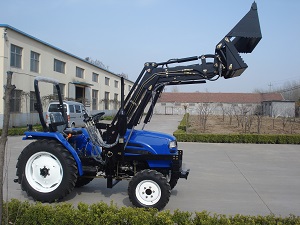

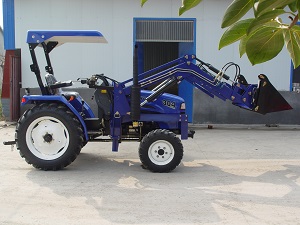

Front Loader

Front End Loader for tractor

Front End Loader

Description :
Used in shoveling, stacking or short-distance transportation of loose material like stone or garbage.

Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor . The hydraulic elements are standardized, convenient for operation and service.

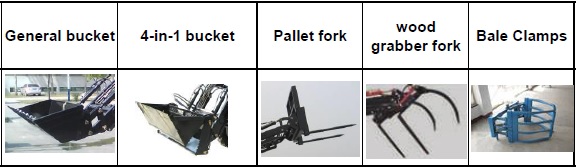

Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc., so as to accomplish different kinds of work.






Attached implements



Model TZ03 TZ04 TZ05 TZ06 TZ08 TZ10 TZ12
Max. Dump Height (mm) 1800 2000 2100 2200 2350 2350 2500
Max. Dump Angle (deg.) 42-45 42-45 42-45 42-45 42-45 42-45 42-45
Rated Load (kg) 300 400 500 600 800 1000 1200
Bucket Capacity (cbm) 0.18 0.3 0.35 0.4 0.48 0.6 1
Max. Digging Depth (mm) 100 120 140 140 180 180 200
Power Matched (hp) 20-30 30-40 40-50 50-60 60-80 80-100 110-140
Structural Weight (kg) 470-650 500-680 530-720 660-800 680-830 800-980 960-1150
